ARCTIC P12 PWM PST A-RGB 0dB Semi-Passive 120 mm Fan with Digital A-RGB Value Pack
SKU
ACFAN00232A
£45.80
In stock
120 mm, 2000 RPM, 48.8 CFM, 82.91 m³/h, 0.11 A / 12V, PWM PST A-RGB 0dB, 131 g, 3 pcs Value Pack
Category: Computer Cooling Components
| Suitable for | Computer case |
|---|---|
| Type | Fan |
| EAN | 4895213703246 |
| Manufacturer | ARCTIC |
| Availability | Y |
| PDF URLs |
View PDF |
RGB FOR FULL COLOUR CONTROL
The P12 PWM PST A-RGB 0dB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
0dB Mode - Zero RPM
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.
MAXIMUM SMOOTHNESS, MINIMUM VIBRATION
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P12 PWM PST A-RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.
OPTIMISED FOR HIGH STATIC PRESSURE
The P12 PWM PST A-RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
0 TO 2000 RPM CONTROLLED VIA PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST A-RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

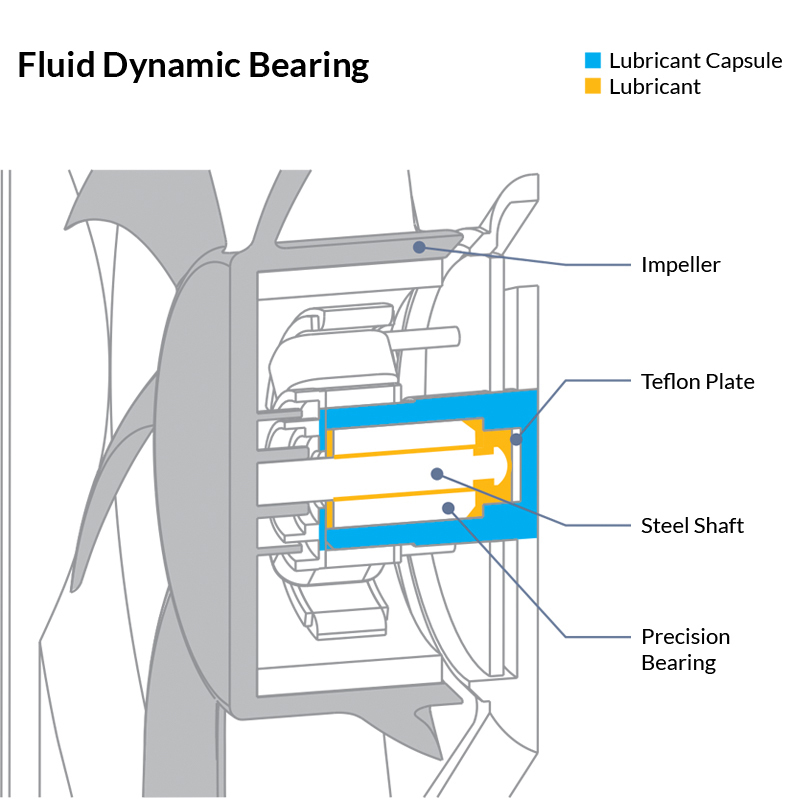

HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 48.8 cfm |
| Maximum air pressure | 1.85 mmH2O |
| Airflow | 82.91 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 3 pc(s) |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Product colour | Black, White |
| Cable length | 0.48 m |
| Illumination LED | Yes |
| Number of LEDs | 12 |
| Technical details | |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 48.8 cfm |
| Maximum air pressure | 1.85 mmH2O |
| Airflow | 82.91 m³/h |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Cable length | 0.48 m |
| Fan connector | 4-pin + 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Voltage | 12 V |
| Rated current | 0.11 A |
| Colour | |
|---|---|
| Product colour | Black, White |
| Weight & dimensions | |
| Package depth | 124 mm |
| Package width | 127 mm |
| Package height | 86 mm |
| Width | 120 mm |
| Package weight | 560 g |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 131 g |
| Cable length | 0.48 m |
| Packaging data | |
| Package depth | 124 mm |
| Package width | 127 mm |
| Package height | 86 mm |
| Package weight | 560 g |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| Other features | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
